MXR9745T1 Datasheet - Motorola

MXR9745T1 31.5 dBm / 850 MHz HIGH FREQUENCY POWER TRANSISTOR LDMOS FET

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MXR9745T1/D Advance Information The RF Small Signal Line Silicon Lateral FET MXR9745T1 MXR9745RT1 31.5 dBm, 850 MHz HIGH FREQUENCY POWER TRANSISTOR LDMOS FET N Channel Enhancement Mode MOSFET Designed for use in low voltage, moderate power amplifiers such as portable analog and digital cellular radios and PC RF modems. Performance Specifications at 6 Volt, 850 MHz: Output Power = 31.5 dBm Min Power Gain =.

MXR9745T1_MotorolaInc.pdf

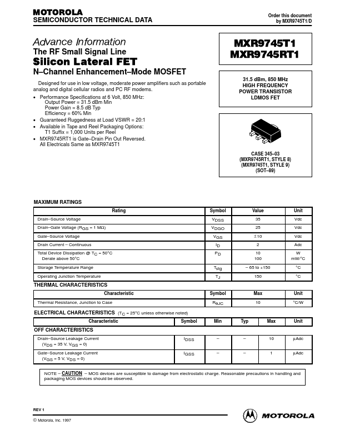

Preview of MXR9745T1 PDF
MXR9745T1 Datasheet Preview Page 2 MXR9745T1 Datasheet Preview Page 3

Datasheet Details

Part number:

MXR9745T1

Manufacturer:

Motorola

File Size:

53.39 KB

Description:

31.5 dbm / 850 mhz high frequency power transistor ldmos fet.
