MXR9500M, MXR9500G Tri Axis Accelerometer

MXR9500M Description

www.DataSheet4U.com Low Cost ±1.5 g Tri Axis Accelerometer with Ratiometric Outputs MXR9500G/M .
The MXR9500G/M is a low cost, tri axis accelerometer fabricated on a standard, submicron CMOS process.

MXR9500M Features

* Low cost RoHS compliant Resolution better than 1 milli-g Tri-axis accelerometer in a single package. On chip mixed signal processing No moving parts No loose particle issues >50,000 g shock survival rating SMT package: 7mm X 7mm X 1.8mm 2.7V to 3.6V single supply continuous operation No adjusting ex

MXR9500M Applications

* GPS
* Electronic Compass Tilt Correction/Navigation Consumer
* LCD projectors, pedometers, blood pressure Monitor, digital cameras/MP3 players Information Appliances
* Computer Peripherals/PDA’s/Mouse Smart Pens/Cell Phones Gaming
* Joystick/RF Interface/Menu Selectio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MXR9500M, MXR9500G. Please refer to the document for exact specifications by model.

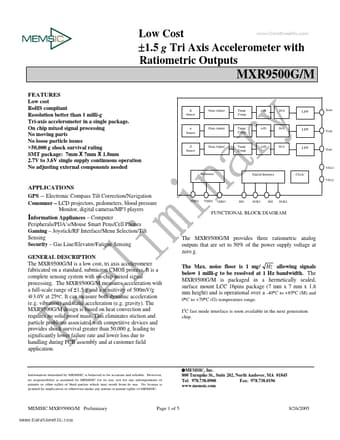

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MXR9500M, MXR9500G
Manufacturer
ETC
File Size
328.07 KB
Datasheet
MXR9500G_ETC.pdf
Description
Tri Axis Accelerometer
Note
This datasheet PDF includes multiple part numbers: MXR9500M, MXR9500G.
Please refer to the document for exact specifications by model.
