MXR9500G

Tri Axis Accelerometer

MXR9500G Features

* Low cost RoHS compliant Resolution better than 1 milli-g Tri-axis accelerometer in a single package. On chip mixed signal processing No moving parts No loose particle issues >50,000 g shock survival rating SMT package: 7mm X 7mm X 1.8mm 2.7V to 3.6V single supply continuous operation No adjusting ex

MXR9500G General Description

The MXR9500G/M is a low cost, tri axis accelerometer fabricated on a standard, submicron CMOS process. It is a complete sensing system with on-chip mixed signal processing. The MXR9500G/M measures acceleration with a full-scale range of ±1.5 g and a sensitivity of 500mV/g @3.0V at 25°C. It can measu.

MXR9500G Datasheet (328.07 KB)

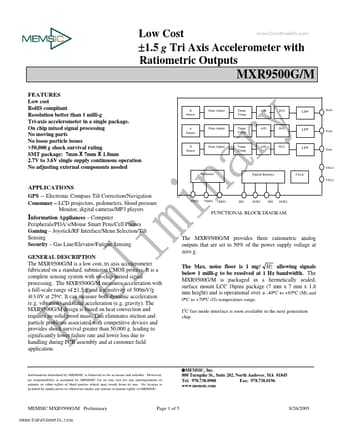

Preview of MXR9500G PDF

Datasheet Details

Part number:

MXR9500G

Manufacturer:

ETC

File Size:

328.07 KB

Description:

Tri axis accelerometer.
