MXR9150M, MXR9150G - Tri Axis Accelerometer

MXR9150M Description

Low Cost ±5 g Tri Axis Accelerometer with Ratiometric Outputs MXR9150G/M .
The MXR9150G/M is a low cost, tri axis accelerometer fabricated on a standard, submicron CMOS process.

MXR9150M Features

* Low cost RoHS compliant Resolution better than 1 mg Tri-axis accelerometer in a single package. On chip mixed signal processing No moving parts No loose particle issues >50,000 g shock survival rating SMT package: 7mm X 7mm X 1.8mm 2.7V to 3.6V single supply continuous operation No adjusting externa

MXR9150M Applications

* GPS
* Electronic Compass Tilt Correction/Navigation Consumer
* LCD projectors, pedometers, blood pressure monitor, digital cameras/MP3 players Information Appliances
* Computer Peripherals/PDA’s/Mouse Smart Pens/Cell Phones Gaming
* Joystick/RF Interface/Menu Selectio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MXR9150M, MXR9150G. Please refer to the document for exact specifications by model.

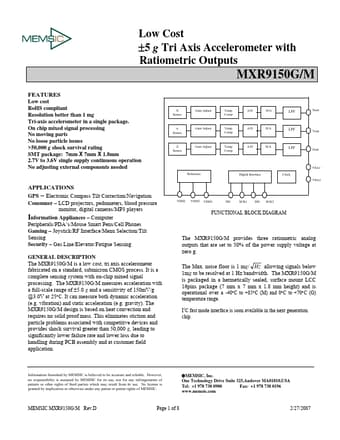

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MXR9150M, MXR9150G
Manufacturer
MEMSIC
File Size
139.11 KB
Datasheet
MXR9150G-MEMSIC.pdf
Description
Tri Axis Accelerometer
Note
This datasheet PDF includes multiple part numbers: MXR9150M, MXR9150G.
Please refer to the document for exact specifications by model.
