MXR2999E - Dual Axis Accelerometer

MXR2999E Description

Low Offset drift, ±0.5g Dual Axis Accelerometer with Ratiometric Output MXR2999E .
The MXR2999E is a low noise and low cost, dual axis accelerometer fabricated on a standard, submicron CMOS process.

MXR2999E Features

* Better than 1 mg resolution Dual axis accelerometer fabricated on a monolithic CMOS IC RoHS compliant On-chip mixed mode signal processing No moving parts 50,000 g shock survival rating ±0.4mg/°C offset drift over temperature 3V to 5.25V single supply continuous operation Small (5mm x 5mm x 2mm) sur

MXR2999E Applications

* Automotive
* Vehicle Security/Active Suspension/ABS Headlight Angle Control/Tilt Sensing Security
* Gas Line/Elevator/Fatigue Sensing Office Equipment
* Computer Peripherals/PDA/Cell Phones/Digital Projectors Gaming
* Joystick/RF Interface/Menu Selection/Tilt Sensing

📥 Download Datasheet

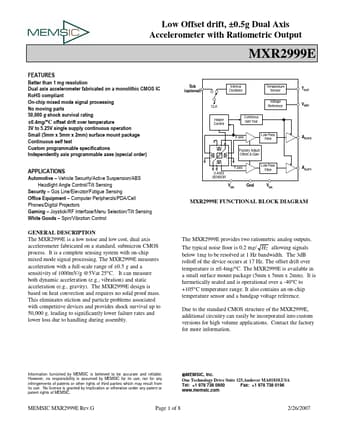

Preview of MXR2999E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MXR2999E
Manufacturer
MEMSIC
File Size
190.08 KB
Datasheet
MXR2999E-MEMSIC.pdf
Description
Dual Axis Accelerometer
