MXR6500M, MXR6500G Dual Axis Accelerometer

MXR6500M Description

Low Profile, Low Power ±1.7g Dual Axis Accelerometer with Ratiometric Outputs MXR6500G/M .

MXR6500M Features

* Low power consumption: typically 2.0mA @ 3.0V RoHS compliant Resolution better than 1 mg Dual axis accelerometer fabricated on a monolithic CMOS IC On chip mixed signal processing No moving parts; No loose particle issues >50,000 g shock survival rating Low profile LCC package: 5mm X 5mm X 1.55mm 2.

MXR6500M Applications

* Automotive
* Vehicle Security/Active Suspension/ABS Headlight Angle Control/Tilt Sensing Security
* Gas Line/Elevator/Fatigue Sensing Office Equipment
* Computer Peripherals/PDA’s/Cell Phones Gaming
* Joystick/RF Interface/Menu Selection/Tilt Sensing White Goods

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MXR6500M, MXR6500G. Please refer to the document for exact specifications by model.

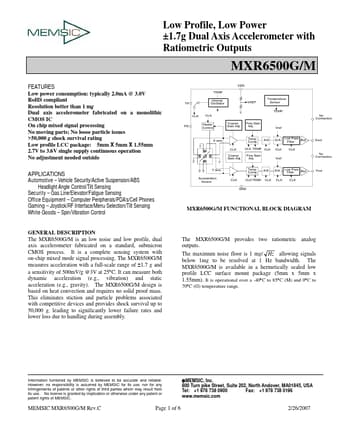

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MXR6500M, MXR6500G
Manufacturer
MEMSIC
File Size
124.11 KB
Datasheet
MXR6500G-MEMSIC.pdf
Description
Dual Axis Accelerometer
Note
This datasheet PDF includes multiple part numbers: MXR6500M, MXR6500G.
Please refer to the document for exact specifications by model.
