2N4403, 2N4401 General Purpose Switching Transistors

2N4403 Description

2N4401 & 2N4403 General Purpose Switching Transistors .

2N4403 Features

* NPN/PNP Silicon Planar Epitaxial Transistors.

2N4403 Applications

* 2N 4401 Type NPN.

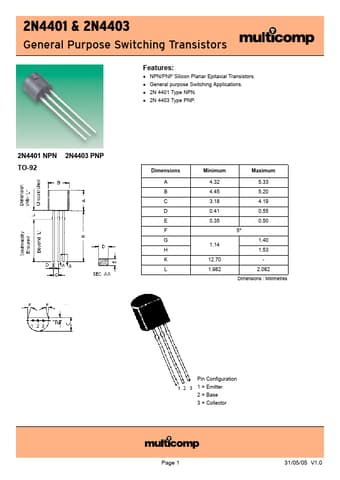

* 2N 4403 Type PNP. 2N4401 NPN 2N4403 PNP TO-92 Dimensions A B C D E F G H K L Minimum 4.32 4.45 3.18 0.41 0.35 1.14 12.70 1.982 Maximum 5.33 5.20 4.19 0.55 0.50 5° 1.40 1.53 2.082 Dimensions : Millimetres Pin Configuration 1 = Emitter 2 = Base 3 = Collector
