2N5320

Medium Power Transistors

2N5320 Features

* High performance, low frequency devices typically with current ratings 2A. Up to 1W power dissipation.

* Silicon Power Switching Transistors.

* Medium Power Amplifier and Switching Applications. 2N5320 NPN 2N5322 PNP TO-39 Metal Can Package Dimensions A B C D E F G H J K

2N5320 General Description

Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current-Continuous Base Current Power Dissipation at Ta = 25°C Derate above 25°C Power Dissipation at Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Thermal Characteristics Junction to Ambie.

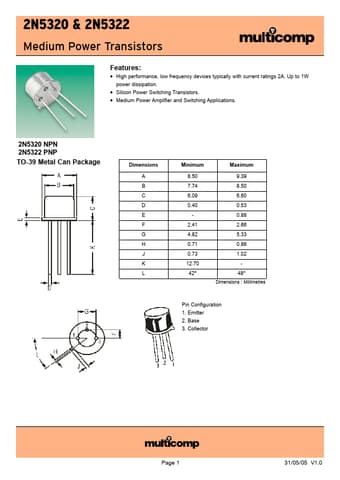

2N5320 Datasheet (303.23 KB)

Preview of 2N5320 PDF

Datasheet Details

Part number:

2N5320

Manufacturer:

Multicomp

File Size:

303.23 KB

Description:

Medium power transistors.
