2N5303 Datasheet, Transistor, Multicomp

2N5303 Features

  • Transistor
  •   High Collector Sustaining Voltage :VCEO = 80V @ IC = 200mA
  •   Low Collector Emitter saturation Voltage VCE(sat) 1V @ IC = 10A 2 Base 1 Emitter Description: High po

PDF File Details

Part number:

2N5303

Manufacturer:

Multicomp

File Size:

191.10kb

Download:

📄 Datasheet

Description:

Bipolar transistor. High power, NPN, TO-3, Silicon Transistor Designed for use in power amplifier and switching circuits applications Maximum Ratings:

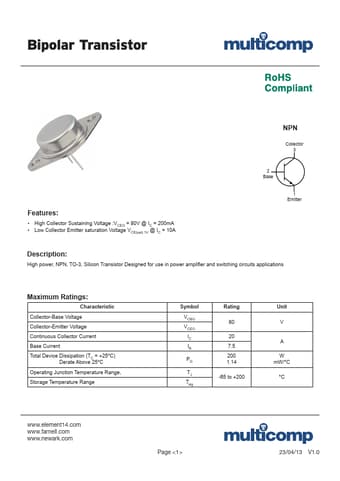

Datasheet Preview: 2N5303 📥 Download PDF (191.10kb)
Page 2 of 2N5303 Page 3 of 2N5303

2N5303 Application

  • Applications Maximum Ratings: Characteristic Collector-Base Voltage Collector-Emitter Voltage Continuous Collector Current Base Current Total Devic
