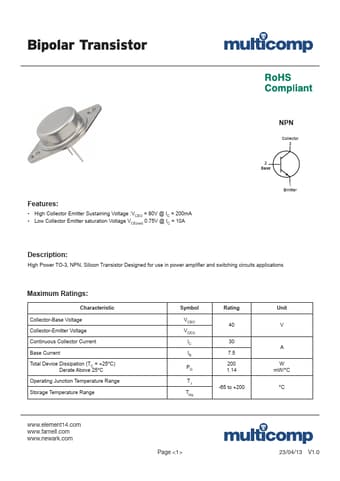

2N5301 Datasheet, Transistor, Multicomp

2N5301 Features

• Transistor
•   High Collector Emitter Sustaining Voltage :VCEO = 80V @ IC = 200mA
•   Low Collector Emitter saturation Voltage VCE(sat) 0.75V @ IC = 10A NPN Collector 3 2 Base 1 Em

PDF File Details

Part number:

2N5301

Manufacturer:

Multicomp

File Size:

192.09kb

Download:

📄 Datasheet

Description:

Bipolar transistor. High Power TO-3, NPN, Silicon Transistor Designed for use in power amplifier and switching circuits applications Maximum Ratings: C

2N5301 Application

• Applications Maximum Ratings: Characteristic Collector-Base Voltage Collector-Emitter Voltage Continuous Collector Current Base Current Total Devic
