TIP35C - Complementary Power Transistors

Multicomp

📥 Download Datasheet

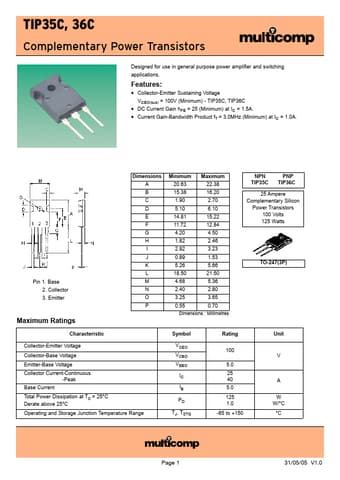

TIP35C Datasheet Preview — Preview of TIP35C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TIP35C
Manufacturer: Multicomp
File Size: 199.80 KB
Datasheet: TIP35C-Multicomp.pdf
Description: Complementary Power Transistors

TIP35C Product details

Features

Collector-Emitter Sustaining Voltage VCEO(sus) = 100V (Minimum) - TIP35C, TIP36C.
DC Current Gain hFE = 25 (Minimum) at IC = 1.5A.
Current Gain-Bandwidth Product fT = 3.0MHz (Minimum) at IC = 1.0A. Pin 1. Base 2. Collector 3. Emitter Maximum Ratings Dimensions A B C D E F G H I J K L M N O P Minimum Maximum 20.63 22.38 15.38 16.20 1.90 2.70 5.10 6.10 14.81 15.22 11.72 12.84 4.20 4.50 1.82 2.46 2.92 3.23 0.89 1.53 5.26 5.66 18.50 21.50 4.68 5.36.
