D1U3CS-D-850-12-HA3C

DC/DC Front End Power Supply

D1U3CS-D-850-12-HA3C Features

* n 850W output power n 87% efficient at half power n 12V main output n 3.3V or 5V standby output of 20W n 1U sized; dimensions 3.20”x11.00”x1.57” n 15.4 Watts per cubic inch density n N+1 redundancy capable, including hot plugging (up to 8 in parallel) n Active current sharing on 12V main out

D1U3CS-D-850-12-HA3C General Description

IEC/EN 61000-3-2 IEC/EN 61000-3-3 FCC 47 CFR Part 15/CISPR 22/EN55022 IEC/EN 61000-4-2 IEC/EN 61000-4-3 IEC/EN 61000-4-4 IEC/EN 61000-4-5 IEC/EN 61000-4-6 IEC/EN 61000-4-8 IEC/EN 61000-4-11 Criteria Class A, 6dB margin Level 3 criteria A Level 3 criteria B Level 3 criteria A Level 3 criteria A Lev.

D1U3CS-D-850-12-HA3C Datasheet (458.53 KB)

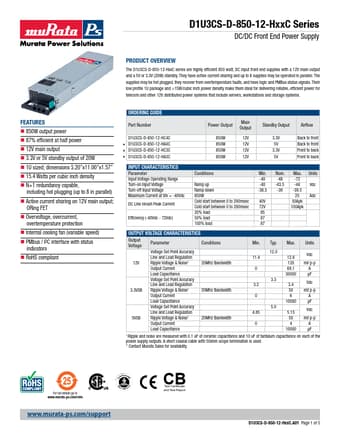

Preview of D1U3CS-D-850-12-HA3C PDF

Datasheet Details

Part number:

D1U3CS-D-850-12-HA3C

Manufacturer:

Murata Power Solutions

File Size:

458.53 KB

Description:

Dc/dc front end power supply.
