D1U3CS-W-1200-12-HA4C

81mm 1U Front End AC-DC Power Supply Converter

D1U3CS-W-1200-12-HA4C Features

* 1200W output power

* 80 PLUS® Gold efficiency

* 12V main output

* 3.3V or 5V standby output of 20W

* 1U height: 3.20" x 11.00" x 1.57"

* 21.7 Watts per cubic inch density

* N+1 redundancy capable, including hot plugging (up to 8 in parallel)

D1U3CS-W-1200-12-HA4C General Description

Main output voltage return Main output voltage Input.  Internal 10K ohm pull-up (accepts open collector/drain drive). This signal to be pulled low to turn-on power supply. Main output remote sense return A TTL logic HIGH when operating temperature within allowable range Power supply is plugged into .

D1U3CS-W-1200-12-HA4C Datasheet (263.80 KB)

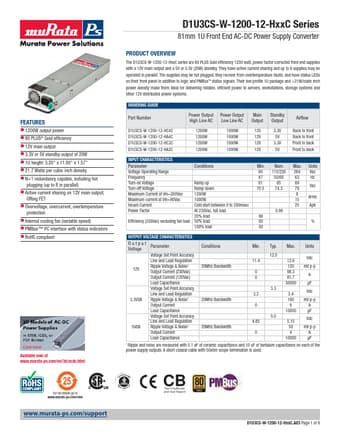

Preview of D1U3CS-W-1200-12-HA4C PDF

Datasheet Details

Part number:

D1U3CS-W-1200-12-HA4C

Manufacturer:

Murata Power Solutions

File Size:

263.80 KB

Description:

81mm 1u front end ac-dc power supply converter.
