D1U3CS-W-850-12-HC3C Datasheet - Murata Power Solutions

D1U3CS-W-850-12-HC3C 81mm 1U Front End AC-DC Power Supply Converter

Main output voltage, return Main output voltage Power supply “ON” Main output remote sense, return Temperature “OK” signal output Power supply is plugged into the system Standby output voltage Standby output voltage, return Input AC voltage “OK” signal output Main output remote sense Main output act.
www.murata-ps.com PRODUCT OVERVIEW ORDERING GUIDE D1U3CS-W-850-12-HxxC Series 81mm 1U Front End AC-DC Power Supply Converter The D1U3CS-W-850-12-HxxC series are 80 PLUS Gold efficiency 850 watt, power factor corrected front end supplies with a 12V main output and a 3.3V (20W) standby. They have active current sharing and up to 4 supplies may be operated in parallel. The supplies may be hot plugged, they recover from overtemperature faults, and have logic and PMBus status signals. Their low profi.

D1U3CS-W-850-12-HC3C Features

* 850W output power

* 80 PLUS® Gold efficiency

* 12V main output

* 3.3V or 5V standby output of 20W

* 1U height: 3.20" x 11.00" x 1.57"

* 15.4 Watts per cubic inch density

* N+1 redundancy capable, including hot plugging (up to 4 in parallel)

D1U3CS-W-850-12-HC3C Datasheet (264.41 KB)

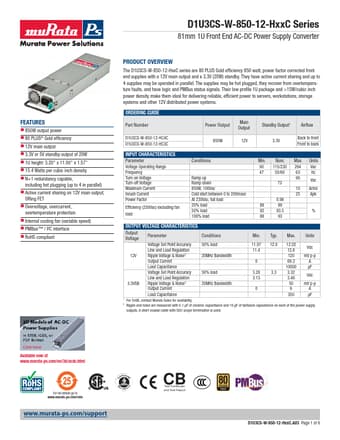

Preview of D1U3CS-W-850-12-HC3C PDF
D1U3CS-W-850-12-HC3C Datasheet Preview Page 2 D1U3CS-W-850-12-HC3C Datasheet Preview Page 3

Datasheet Details

Part number:

D1U3CS-W-850-12-HC3C

Manufacturer:

Murata Power Solutions

File Size:

264.41 KB

Description:

81mm 1u front end ac-dc power supply converter.
