D1U3CS-W-850-12-HC4C

81mm 1U Front End AC-DC Power Supply Converter

D1U3CS-W-850-12-HC4C Features

* 850W output power

* 80 PLUS® Gold efficiency

* 12V main output

* 3.3V or 5V standby output of 20W

* 1U height: 3.20" x 11.00" x 1.57"

* 15.4 Watts per cubic inch density

* N+1 redundancy capable, including hot plugging (up to 4 in parallel)

D1U3CS-W-850-12-HC4C General Description

Main output voltage, return Main output voltage Power supply “ON” Main output remote sense, return Temperature “OK” signal output Power supply is plugged into the system Standby output voltage Standby output voltage, return Input AC voltage “OK” signal output Main output remote sense Main output act.

D1U3CS-W-850-12-HC4C Datasheet (264.41 KB)

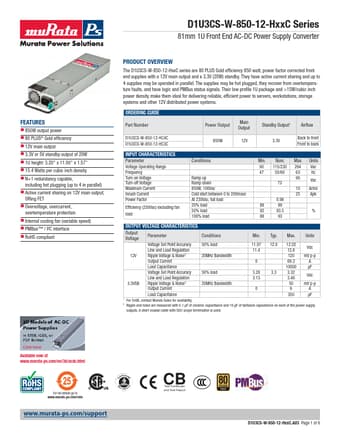

Preview of D1U3CS-W-850-12-HC4C PDF

Datasheet Details

Part number:

D1U3CS-W-850-12-HC4C

Manufacturer:

Murata Power Solutions

File Size:

264.41 KB

Description:

81mm 1u front end ac-dc power supply converter.
www.murata-ps.com PRODUCT OVERVIEW ORDERING GUIDE D1U3CS-W-850-12-HxxC Series 81mm 1U Front End AC-DC Power Supply Converter The D1U3CS-W-850-12-Hxx.
