D1U3CS-W-1300F-12-HA4EC - 81mm Front End AC-DC Power Converter

Product Overview

Murata Power Solutions

Datasheet Details

Part number	D1U3CS-W-1300F-12-HA4EC
Manufacturer	Murata Power Solutions
File Size	174.48 KB
Description	81mm Front End AC-DC Power Converter
Datasheet	D1U3CS-W-1300F-12-HA4EC Datasheet

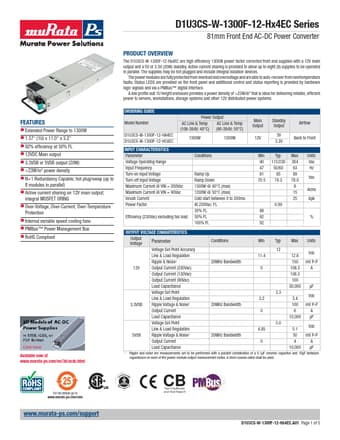

Additional preview pages of the D1U3CS-W-1300F-12-HA4EC datasheet.

Product details

Description

PB1, PB2, PB3 +12V GND Main Output Voltage, Return PB4, PB5, PB6 +12V OUT Main Output Voltage Signal Pin Assignment Signal Name Description An input pulled up via an internal 10K ohm to the Standby rail.

Features

 Extended Power Range to 1300W.
 1.57" (1U) x 11.0" x 3.2".
 92% efﬁciency at 50% FL.
 12VDC Main output.
 3.3VSB or 5VSB output (20W).
 >23W/in3 power density.
 N+1 Redundancy Capable; hot plug/swap (up to 8 modules in parallel).
 Active current sharing on 12V main output; integral MOSFET ORING.
 Over-Voltage, Over-Current; Over-Temperature Protection.
 Internal variable speed cooling fans.
 PMBus™ Power Management Bus.
 RoHS Complian.
