D1U3CS-W-1200-12-HA3C - 81mm 1U Front End AC-DC Power Supply Converter

Product Overview

Murata Power Solutions

📥 Download Datasheet

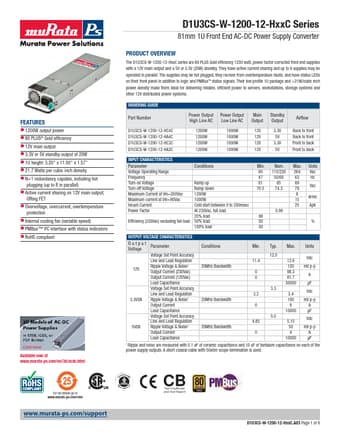

D1U3CS-W-1200-12-HA3C 81mm 1U Front End AC-DC Power Supply Converter by Murata Power Solutions - Datasheet Preview — Datasheet preview – D1U3CS-W-1200-12-HA3C

Datasheet Details

Part number	D1U3CS-W-1200-12-HA3C
Manufacturer	Murata Power Solutions
File Size	263.80 KB
Description	81mm 1U Front End AC-DC Power Supply Converter
Datasheet	D1U3CS-W-1200-12-HA3C Datasheet
Additional preview pages of the D1U3CS-W-1200-12-HA3C datasheet.

Product details

Description

Main output voltage return Main output voltage Input.

Features

1200W output power.
80 PLUS® Gold efﬁciency.
12V main output.
3.3V or 5V standby output of 20W.
1U height: 3.20" x 11.00" x 1.57".
21.7 Watts per cubic inch density.
N+1 redundancy capable, including hot plugging (up to 8 in parallel).
Active current sharing on 12V main output; ORing FET.
Overvoltage, overcurrent, overtemperature protection.
Internal cooling fan (variable speed).
PMBus™ I²C interf.
