D1U3CS-D-850-12-HC4C - 81mm 1U Front End DC-DC Power Supply Converter

Main output voltage, return Main output voltage Power supply “ON” Main output remote sense, return Temperature “OK” signal output Power supply is plugged into the system Standby output voltage Standby output voltage, return Input DC voltage “OK” signal output Main output remote sense Main output act.

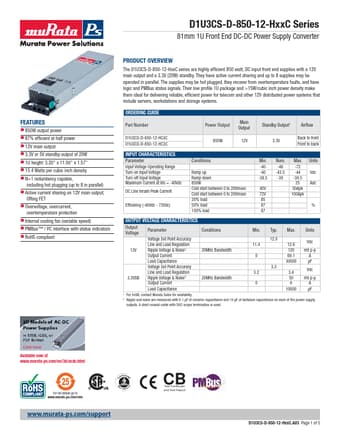

www.murata-ps.com D1U3CS-D-850-12-HxxC Series 81mm 1U Front End DC-DC Power Supply Converter PRODUCT OVERVIEW The D1U3CS-D-850-12-HxxC series are highly efﬁcient 850 watt, DC input front end supplies with a 12V main output and a 3.3V (20W) standby. They have active current sharing and up to 8 supplies may be operated in parallel. The supplies may be hot plugged, they recover from overtemperature faults, and have logic and PMBus status signals. Their low proﬁle 1U package and >15W/cubic inch pow.

D1U3CS-D-850-12-HC4C Features

*  850W output power

*  87% efﬁcient at half power

*  12V main output

*  3.3V or 5V standby output of 20W

*  1U height: 3.20" x 11.00" x 1.57"

*  15.4 Watts per cubic inch density

*  N+1 redundancy capable, including hot plugging (up to 8 in parallel)

*  Active curren
