DMS-20LCD-420, DMS-20LCD-4, Digit LCD Display Process Monitors

www.murata-ps.com DMS-20LCD-4/20 Series 4-20mA Input Loop-Powered Ultra-Low 1.8V Loop Drop 3½ Digit LCD Display Process Monitors .

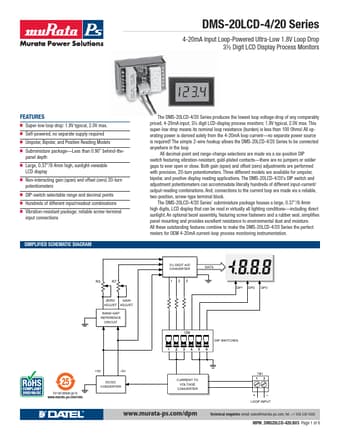

datasheet Preview Page 1 from Datasheet4u.com

DMS-20LCD-4-Murata.pdf

DMS-20LCD-420 Datasheet Preview — This datasheet PDF includes multiple part numbers: DMS-20LCD-420, DMS-20LCD-4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DMS-20LCD-420, DMS-20LCD-4

Manufacturer:

Murata

File Size:

203.98 KB

Description:

Digit LCD Display Process Monitors

Note:

This datasheet PDF includes multiple part numbers: DMS-20LCD-420, DMS-20LCD-4.
Please refer to the document for exact specifications by model.

Features

* Super-low loop drop: 1.8V typical, 2.0V max.
* Self-powered, no separate supply required
* Unipolar, Bipolar, and Positive Reading Models
* Subminiature package
* Less than 0.90” behind-the- panel depth
* Large, 0.37"/9.4mm high, sunlight-viewable LCD display
* Non-in

Applications

* The DMS-20LCD-4/20’s DIP switch and adjustment potentiometers can accommodate literally hundreds of different input-current/ output-reading combinations. And, connections to the current loop are made via a reliable, two-position, screw-type terminal block. The DMS-20LCD-4/20 Series’ subminiature pa
