DMS-78xxSR Datasheet, Regulators, Datel

DMS-78xxSR Features

  • Regulators
  • 3.3V/0.5A, 5V/0.5A or 12V/0.4A outputs; Pin and size-compatible with LM7805 & LM7812 regulators
  • Up to 95% efficiency
      – no heat sinks or thermal derati

PDF File Details

Part number:

DMS-78xxSR

Manufacturer:

Datel

File Size:

368.37kb

Download:

📄 Datasheet

Description:

3.3v/5v/12v outputs high-effi ciency switching regulators.

Datasheet Preview: DMS-78xxSR 📥 Download PDF (368.37kb)

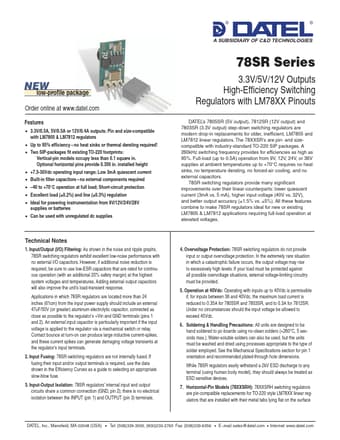

Page 2 of DMS-78xxSR Page 3 of DMS-78xxSR

DMS-78xxSR Application

  • Applications requiring full-load operation at elevated voltages. Technical Notes 1. Input/Output (I/O) Filtering: As shown in the noise and ripple
