DMS-20, DMS20, LCD SEGMENTED NUMERIC CHARACTER MODULE

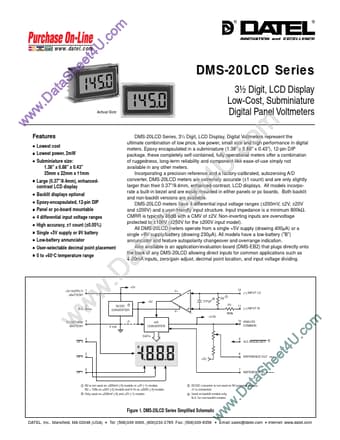

m o c .www.datel.com U 4 t e e h S a t a D .w w w Actual Size ® ® DMS-20LCD Series 3½ Digit, LCD Display Low-Cost, Subminiature Digital Panel Vol.

datasheet Preview Page 1 from Datasheet4u.com

DMS20_Datel.pdf

DMS-20 Datasheet Preview — This datasheet PDF includes multiple part numbers: DMS-20, DMS20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DMS-20, DMS20

Manufacturer:

Datel

File Size:

249.65 KB

Description:

LCD SEGMENTED NUMERIC CHARACTER MODULE

Note:

This datasheet PDF includes multiple part numbers: DMS-20, DMS20.
Please refer to the document for exact specifications by model.

Features

* Lowest cost
* Lowest power, 2mW
* Subminiature size: 1.38" x 0.88" x 0.43" 35mm x 22mm x 11mm
* Large (0.37"/9.4mm), enhancedcontrast LCD display
* Backlit displays optional
* Epoxy-encapsulated, 12-pin DIP
* Panel or pc-board mountable

Applications

* such as 4-20mA inputs, zero/gain adjust, decimal point location, and input voltage dividing.
* 5V 0.01µF R2 1 N. C. 2 DC/DC CONVERTER 3 R1 11 V
* (+) INPUT HI 909k » +2.0V J1 0 Vdc A/D CONVERTER 4 DP 3 DATA DP 2 5 +5V 6 DP 1 1 R2 is not used on ±200mV (-0) models
