DMS-3019X - LCD Display Digital Panel Voltmeters

Datel

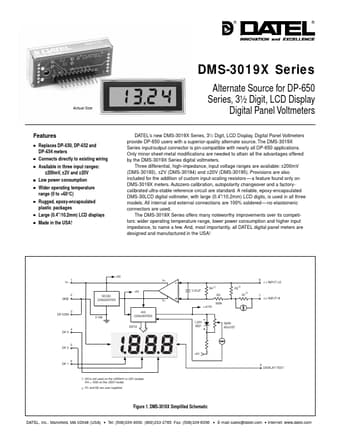

DMS-3019X Datasheet Preview — Preview of DMS-3019X PDF

Datasheet Details

Part number	DMS-3019X
Manufacturer	Datel
File Size	121.62 KB
Description	LCD Display Digital Panel Voltmeters
Datasheet	DMS-3019X_Datel.pdf

DMS-3019X Product details

Description

contained herein do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. + VIN +5V Power Supply Typical Single-ended Connections BEZEL INSTALLATION

Features

Replaces DP-650, DP-652 and DP-654 meters.
Connects directly to existing wiring.
Available in three input ranges: ±200mV, ±2V and ±20V.
Low power consumption.
Wider operating temperature range (0 to +60°C).
Rugged, epoxy-encapsulated plastic packages.
Large (0.4"/10.2mm) LCD displays.
Made in the USA! +5V V+ 1 V+ R4 R3 V.
≈+2.0V 3 DP COM 0 Vdc A/D.
