DMS1067S

monolithic step-down switch mode converter

DMS1067S Features

* 2A Output Current

* 0.22Ω Internal Power MOSFET Switch

* Stable with Low ESR Output Ceramic Capacitors

* Up to 95% Efficiency

* 25µA Shutdown Mode

* Fixed 420KHz Frequency

* Thermal Shutdown

* Cycle-by-Cycle Over Current Protection

DMS1067S General Description

The DMS1067 is a monolithic step-down switch mode converter with a built in internal power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. The DMS1067 requires a minimum number of readily available standard external components..

DMS1067S Datasheet (308.67 KB)

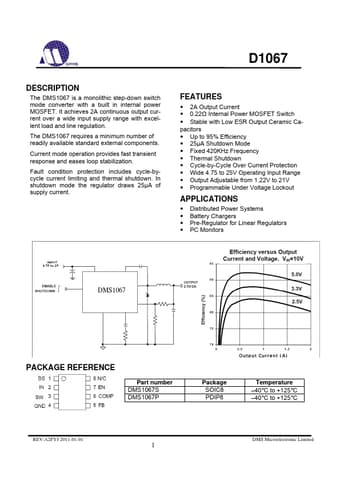

Preview of DMS1067S PDF

Datasheet Details

Part number:

DMS1067S

Manufacturer:

DMS

File Size:

308.67 KB

Description:

Monolithic step-down switch mode converter.
