MTD516

16 Port 10M/100M Ethernet Switch

MTD516 Features

* IEEE802.3 and IEEE802.3u compliant.

* Provide 16 RMII (Reduced Media Independent Interface) ports.

* Programmable 1K/8K MAC addresses filtering database.

* Store and forward switching function and bad packet filtering function.

* Optional back_pressure/802.3

MTD516 General Description

The MTD516 complies fully with the IEEE802.3, 802.3u and 802.3x specifications and is a non-blocking 16 port 10M/100M Ethernet switch device. Support 16 RMII ports for 10M/100M operation. 4MB memory interface provides maximum 2730 packet buffers for Ethernet packet buffering. Up to 8192 address entr.

MTD516 Datasheet (288.87 KB)

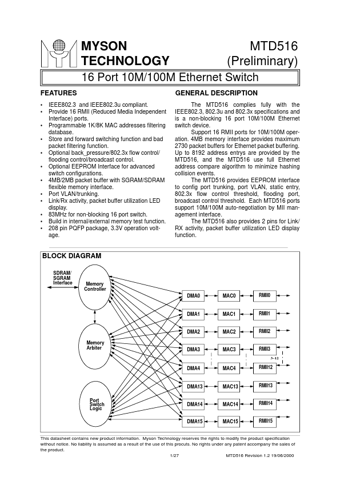

Preview of MTD516 PDF

Datasheet Details

Part number:

MTD516

Manufacturer:

Myson

File Size:

288.87 KB

Description:

16 port 10m/100m ethernet switch.
