* VGS=4.5V, ID=3A
* Low Gate Charge
* Simple Drive Requirement

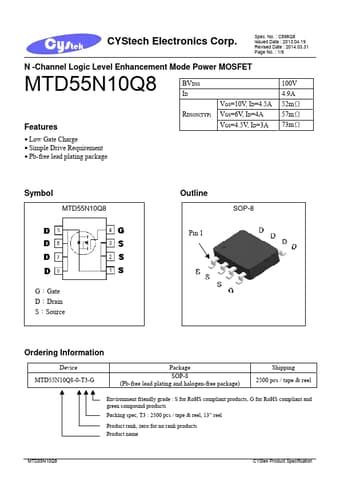

* Pb-free lead plating package 100V 4.9A 52mΩ 57mΩ 73mΩ Symbol MTD55N10Q8 Outline Pin 1 SOP-8 G：Gate D：Drain S：Source Ordering Information Device MTD55N10Q8-0-T3-G Package SOP-8 (Pb-free lead plating and ha
MTD55N10Q8 Datasheet (372.12 KB)
MTD55N10Q8
CYStech
372.12 KB
N-channel logic level enhancement mode power mosfet.
CYStech Electronics Corp.
Spec. No. : C898Q8 Issued Date : 2013.04.19 Revised Date : 2014.03.31 Page No. : 1/9
N -Channel Logic Level Enhancement Mo.
