AXK6F60345 - HEADER CONNECTOR

NAIS

📥 Download Datasheet

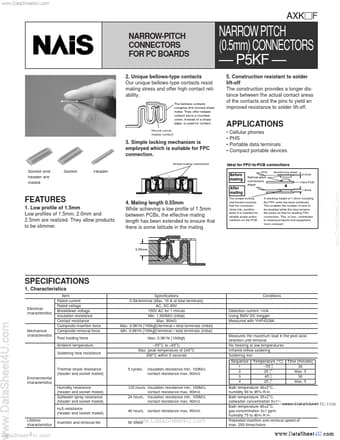

AXK6F60345 Datasheet Preview — Preview of AXK6F60345 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AXK6F60345
Manufacturer	NAIS
File Size	428.31 KB
Description	HEADER CONNECTOR
Datasheet	AXK6F60345_NAIS.pdf

AXK6F60345 Product details

Features

1. Low profile of 1.5mm Low profiles of 1.5mm, 2.0mm and 2.5mm are realized. They allow products to be slimmer. 4. Mating length 0.55mm While achieving a low profile of 1.5mm between PCBs, the effective mating length has been extended to ensure that there is some latitude in the mating. The simple locking mechanism ensures that the connector clicks into position when it is inserted for reliable single-action insertion on the PCB. A stacking height of 1.9mm including the FPC area has been achi.
