AXK6F, AXK6F70345YJ, NARROW-PITCH CONNECTORS

AXK(5/6)F NARROW-PITCH CONNECTORS FOR BOARD-TO-BOARD CONNECTION 3) Use of Ni barrier construction is standard.Highly effective against solder creepin.

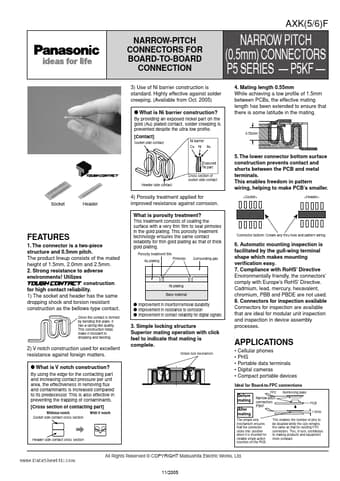

datasheet Preview Page 1 from Datasheet4u.com

AXK6F70345YJ_Panasonic.pdf

AXK6F Datasheet Preview — This datasheet PDF includes multiple part numbers: AXK6F, AXK6F70345YJ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AXK6F, AXK6F70345YJ

Manufacturer:

Panasonic

File Size:

399.82 KB

Description:

NARROW-PITCH CONNECTORS

Note:

This datasheet PDF includes multiple part numbers: AXK6F, AXK6F70345YJ.
Please refer to the document for exact specifications by model.

Features

* 1. The connector is a two-piece structure and 0.5mm pitch. The product lineup consists of the mated height of 1.5mm, 2.0mm and 2.5mm. 2. Strong resistance to adverse environments! Utilizes construction for high contact reliability. 1) The socket and header has the same dropping shock and torsion res

Applications

* Cellular phones
* PHS
* Portable data terminals
* Digital cameras
* Compact portable devices Ideal for Board-to-FPC connections Before mating After mating FPC Reinforcing plate PCB 1.5mm This enables the number of pins to be doubled white the size remains th
