AXK6F70345YJ - NARROW-PITCH CONNECTORS

Panasonic

📥 Download Datasheet

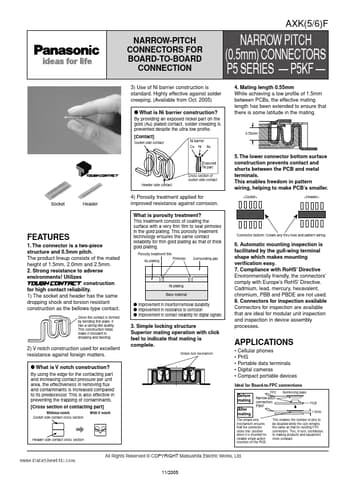

AXK6F70345YJ Datasheet Preview — Preview of AXK6F70345YJ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AXK6F70345YJ
Manufacturer	Panasonic ↗
File Size	399.82 KB
Description	NARROW-PITCH CONNECTORS
Datasheet	AXK6F70345YJ_Panasonic.pdf

AXK6F70345YJ Product details

Features

1. The connector is a two-piece structure and 0.5mm pitch. The product lineup consists of the mated height of 1.5mm, 2.0mm and 2.5mm. 2. Strong resistance to adverse environments! Utilizes construction for high contact reliability. 1) The socket and header has the same dropping shock and torsion resistant construction as the bellows-type contact. Since the contact is formed by bending thin plate, it has a spring-like quality. This construction helps make it resistant to dropping and twisting. C.
