NCE4009S Datasheet, Mosfet, NCE Power Semiconductor

NCE4009S Features

  • Mosfet
  • N-Channel VDS =40V,ID =9A RDS(ON) < 16mΩ @ VGS=10V RDS(ON) < 24mΩ @ VGS=4.5V Schematic diagram
  • High power and current handing capability
  • Lead free produc

PDF File Details

Part number:

NCE4009S

Manufacturer:

NCE Power Semiconductor

File Size:

369.39kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The NCE4009S uses advanced trench technology to provide excellent RDS(ON) and low gate charge . The complementary MOSFETs may be used

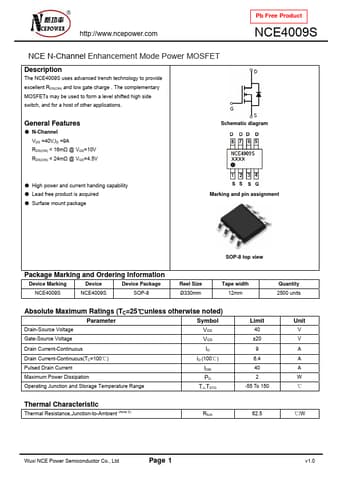

Datasheet Preview: NCE4009S 📥 Download PDF (369.39kb)
Page 2 of NCE4009S Page 3 of NCE4009S

NCE4009S Application

  • Applications General Features
  • N-Channel VDS =40V,ID =9A RDS(ON) < 16mΩ @ VGS=10V RDS(ON) < 24mΩ @ VGS=4.5V Schematic diagram
