Part number:
NCE1520
Manufacturer:
VBsemi
File Size:
315.30 KB
Description:
N-channel 150-v mosfet.
Datasheet Details

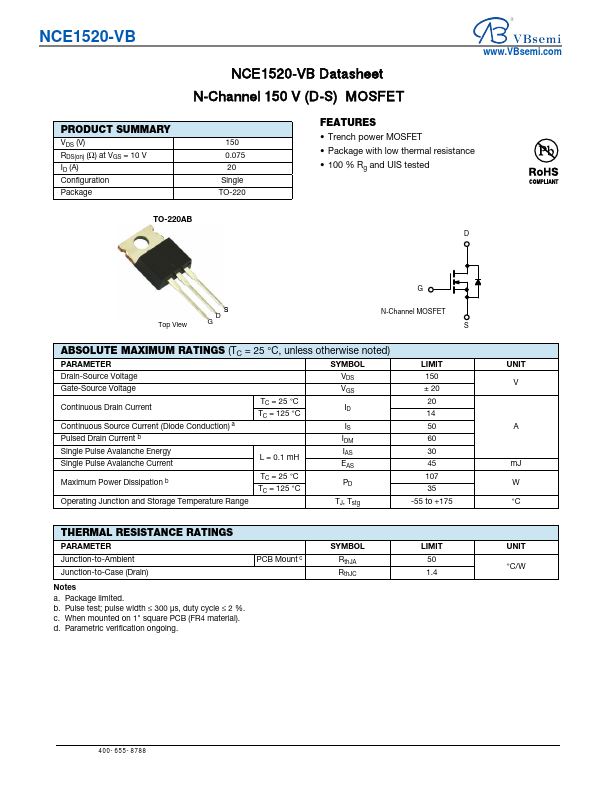

NCE1520 Features
* Trench power MOSFET
* Package with low thermal resistance
* 100 % Rg and UIS tested TO-220AB D Top View S D G G N-Channel MOSFET S ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage VDS Gate-Source Voltage VGS Con
Datasheet Details
NCE1520
VBsemi
315.30 KB
N-channel 150-v mosfet.
NCE1520 Distributor
