NCEP15T14 Datasheet, mosfet equivalent, NCE Power Semiconductor

NCEP15T14 Features

  • Mosfet
  • VDS =150V,ID =140A RDS(ON) <6.2mΩ @ VGS=10V
  • Excellent gate charge x RDS(on) product(FOM)
  • Very low on-resistance RDS(on)
  • 175 °C operating temperat

PDF File Details

Part number:

NCEP15T14

Manufacturer:

NCE Power Semiconductor

File Size:

350.04kb

Download:

📄 Datasheet

Description:

N-channel super trench power mosfet. The NCEP15T14 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performa

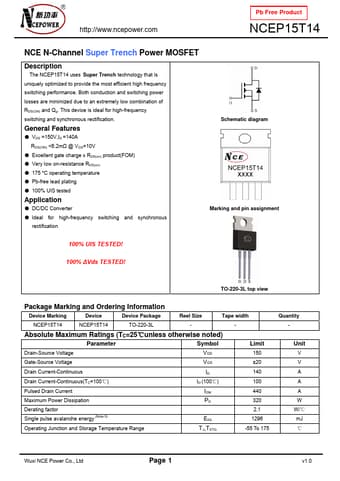

Datasheet Preview: NCEP15T14 📥 Download PDF (350.04kb)
Page 2 of NCEP15T14 Page 3 of NCEP15T14
