NCEP40T11G - N-Channel MOSFET

NCEP40T11G Description

NCEP40T11G-VB NCEP40T11G-VB Datasheet N-Channel 40-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.0025 at VGS = 10 V 0..

NCEP40T11G Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

NCEP40T11G Applications

* Synchronous Rectification
* Secondary Side DC/DC D Top View 1 8 2 7 3 6 G 4 5 PIN1 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 40 V VGS ± 20 TC = 25 °C

📥 Download Datasheet

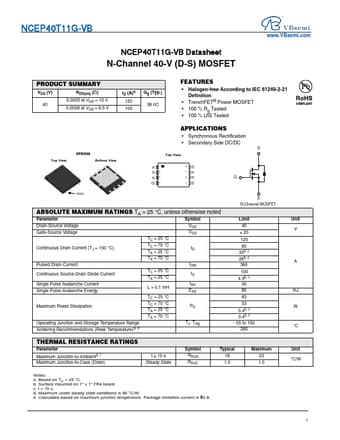

Preview of NCEP40T11G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCEP40T11G
Manufacturer
VBsemi
File Size
318.89 KB
Datasheet
NCEP40T11G-VBsemi.pdf
Description
N-Channel MOSFET
