NCEP40T15G, N-Channel Power MOSFET

http://www.ncepower.com Pb Free Product NCEP40T15G NCE N-Channel Super Trench Power MOSFET .
The NCEP40T15G uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

NCEP40T15G-NCEPowerSemiconductor.pdf

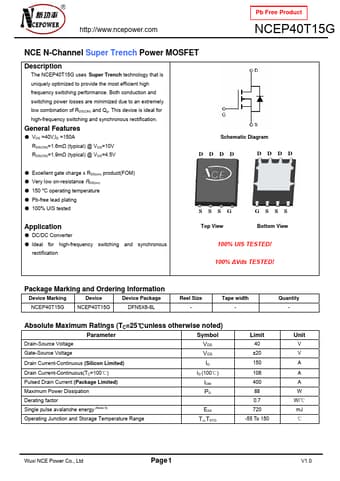

NCEP40T15G Datasheet Preview — Preview of NCEP40T15G PDF

Datasheet Details

Part number:

NCEP40T15G

Manufacturer:

NCE Power Semiconductor

File Size:

383.71 KB

Description:

N-Channel Power MOSFET

Features

* VDS =40V,ID =150A RDS(ON)=1.6mΩ (typical) @ VGS=10V RDS(ON)=1.9mΩ (typical) @ VGS=4.5V Schematic Diagram DDDD DDDD
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 150 °C operating temperature
* Pb-free lead plating
* 100% UIS tested App
