NCEP40T11K Datasheet - NCE Power Semiconductor

N-Channel Power MOSFET

NCEP40T11K Features

* VDS =40V,ID =110A RDS(ON)=2.4mΩ (typical) @ VGS=10V RDS(ON)=3.3mΩ (typical) @ VGS=4.5V Schematic Diagram

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

NCEP40T11K General Description

The NCEP40T11K uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

NCEP40T11K Datasheet (404.94 KB)

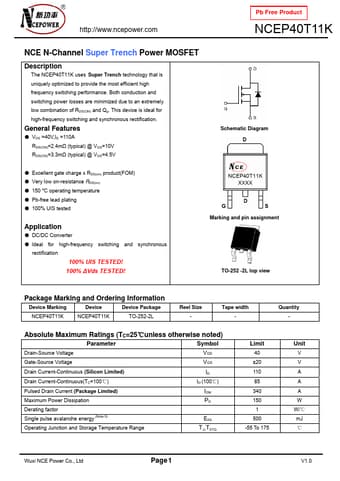

NCEP40T11K Datasheet Preview — Preview of NCEP40T11K PDF

Datasheet Details

Part number:

NCEP40T11K

Manufacturer:

NCE Power Semiconductor

File Size:

404.94 KB

Description:

N-channel power mosfet.
