2SA1222 Datasheet (NEC) - PNP SILICON EPITAXIAL TRANSISTOR

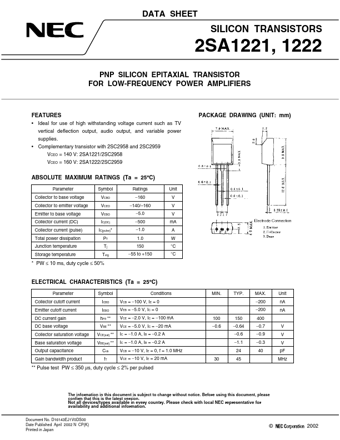

2SA1222, PNP SILICON EPITAXIAL TRANSISTOR

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples.

The incorporation of these circuits, software and information in the design of customer's equipment shall be done under the full r

2SA1222 Features

* Ideal for use of high withstanding voltage current such as TV vertical deflection output, audio output, and variable power supplies.

* Complementary transistor with 2SC2958 and 2SC2959 VCEO = 140 V: 2SA1221/2SC2958 VCEO = 160 V: 2SA1222/2SC2959 PACKAGE DRAWING (UNIT: mm) ABSOLUTE
