2SC2690 - NPN Silicon Transistor

Product Overview

NEC

Part number	2SC2690
Manufacturer	NEC
File Size	1.52 MB
Description	NPN Silicon Transistor
Datasheet	2SC2690 Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SC2690, 2SC2690A. Please refer to the document for exact specifications by model.

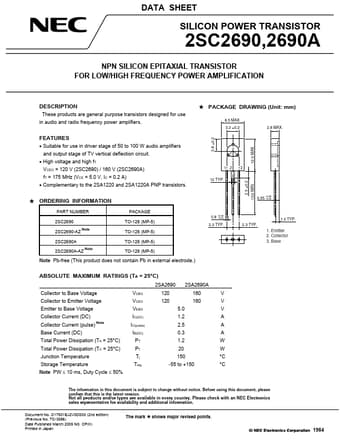

Additional preview pages of the 2SC2690 datasheet.

These products are general purpose transistors designed for use in audio and radio frequency power amplifiers.

Suitable for use in driver stage of 50 to 100 W audio amplifiers and output stage of TV vertical deflection circuit.
High voltage and high fT VCEO = 120 V (2SC2690) / 160 V (2SC2690A) fT = 175 MHz (VCE = 5.0 V, IC = 0.2 A).
Complementary to the 2SA1220 and 2SA1220A PNP transistors.
