2SD1481

SILICON POWER TRANSISTOR

2SD1481 Features

* On-chip C-to-B Zener diode for surge voltage absorption

* Low collector saturation voltage: VCE(SAT) = 1.5 V MAX. (at 1 A)

* Ideal for use in a direct drive from IC to the devices such as OA and FA equipment and motor solenoid relay printer head drivers PACKAGE DRAWING (UN

2SD1481 General Description

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of customer's equipment shall be done under the full r.

2SD1481 Datasheet (135.41 KB)

Preview of 2SD1481 PDF

Datasheet Details

Part number:

2SD1481

Manufacturer:

NEC

File Size:

135.41 KB

Description:

Silicon power transistor.

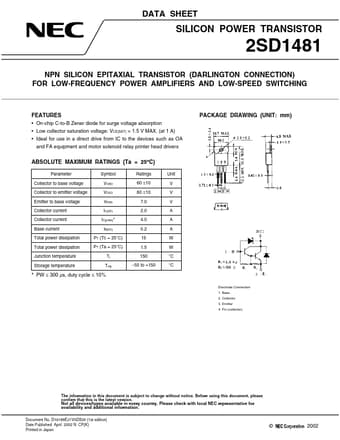

www.DataSheet4U.com DATA SHEET SILICON POWER TRANSISTOR 2SD1481 NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION) FOR LOW-FREQUENCY POWER AM.
