2SD1487 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD1487

Manufacturer:

INCHANGE

File Size:

210.70kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • Low Collector Saturation Voltage- : VCE(sat)= 2.0V(Max)@IC= 5A
  • Wide Area of Safe Operation
  • Complement to T

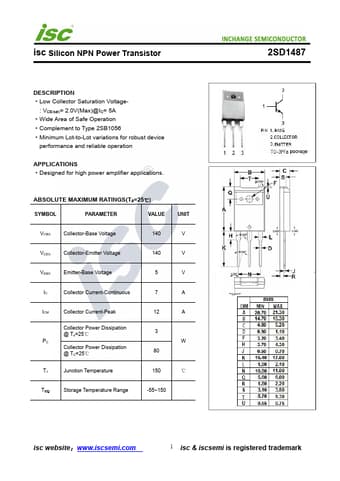

  • Datasheet Preview: 2SD1487 📥 Download PDF (210.70kb)
    Page 2 of 2SD1487

    2SD1487 Application

    • Applications
    • Designed for high power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Colle
