* 15.0±0.3 11.0±0.2 5.0±0.2 3.2 21.0±0.5 15.0±0.2 φ3.2±0.1 2.0±0.2 2.0±0.1 0.6±0.2 1.1±0.1 5.45±0.3 10.9±0.5 1 2 3 s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power TC=25°
2SD1485
Panasonic Semiconductor
44.75 KB
Silicon npn transistor.
Power Transistors

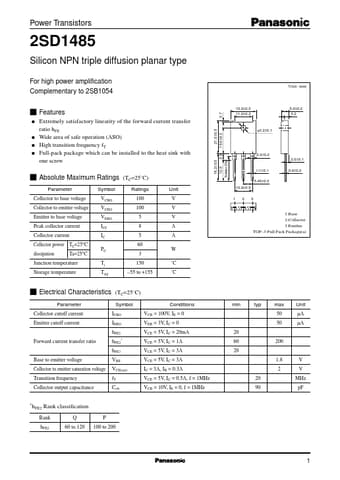

2SD1485
Silicon NPN triple diffusion planar type
For high power amplification Complementary to 2SB1054
Unit: mm
q
q q q
16.2±0.5.
