* High forward current transfer ratio hFE which has satisfactory linearity Low collector to emitter saturation voltage VCE(sat) Full-pack package which can be installed to the heat sink with one screw (TC=25˚C) Ratings 60 60 6 4 2 25 2 150
* 55 to +150 Unit V V V A A W ˚C ˚C 16.7±0.3 14.0±0.5
2SD1480
Panasonic Semiconductor
46.01 KB
Silicon npn transistor.
Power Transistors
2SD1480

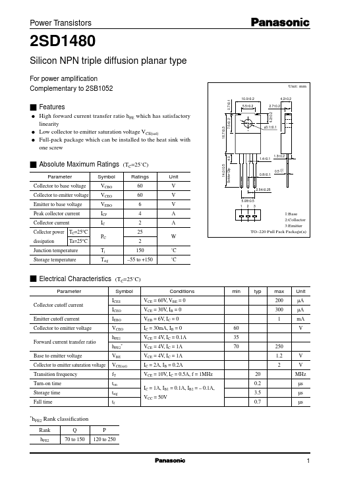

Silicon NPN triple diffusion planar type
For power amplification Complementary to 2SB1052
Unit: mm
0.7±0.1 10.0±0.2 5.5±0.2.
