2SD1843

NPN Silicon Transistor

2SD1843 Features

* High DC current gain due to Darlington connection

* High surge resistance due to on-chip protection elements: C to E: Dumper diode C to B: Zener diode

* Low collector saturation voltage ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Collector to base voltage Collector to e

2SD1843 General Description

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of customer's equipment shall be done under the full r.

2SD1843 Datasheet (73.67 KB)

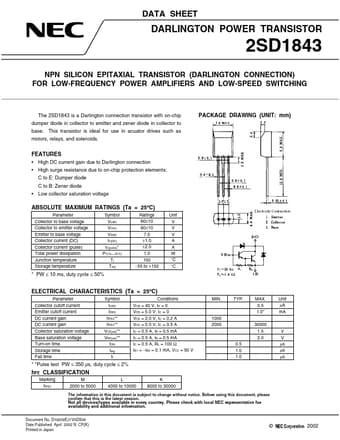

Preview of 2SD1843 PDF

Datasheet Details

Part number:

2SD1843

Manufacturer:

NEC

File Size:

73.67 KB

Description:

Npn silicon transistor.
DATA SHEET DARLINGTON POWER TRANSISTOR 2SD1843 NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION) FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-S.
