2SK2157 - N-CHANNEL MOS FET

Product Overview

NEC

📥 Download Datasheet

2SK2157 N-CHANNEL MOS FET by NEC - Datasheet Preview — Datasheet preview – 2SK2157

Datasheet Details

Part number	2SK2157
Manufacturer	NEC
File Size	60.45 KB
Description	N-CHANNEL MOS FET
Datasheet	2SK2157 Datasheet

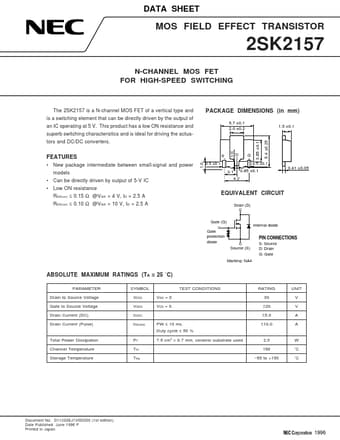

Additional preview pages of the 2SK2157 datasheet.

Product details

Features

New package intermediate between small-signal and power models.
Can be directly driven by output of 5-V IC.
Low ON resistance RDS(on) ≤ 0.15 Ω @VGS = 4 V, ID = 2.5 A RDS(on) ≤ 0.10 Ω @VGS = 10 V, ID = 2.5 A 1.0 S 0.5 ±0.1 D G 0.5 ±0.1 2.1 4.2 0.85 ±0.1 0.41 ±0.05.
