2SK2159 N-CHANNEL MOS FET

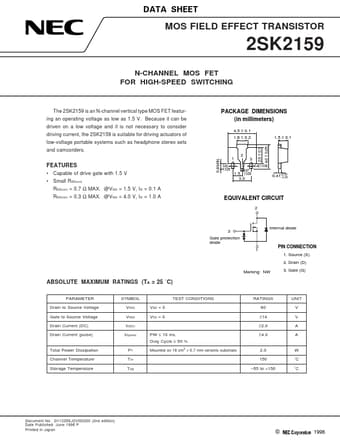

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2159 N-CHANNEL MOS FET FOR HIGH-SPEED SWITCHING The 2SK2159 is an N-channel vertical type MOS FET featuring an operating voltage as low as 1.5 V. Because it can be driven on a low voltage and it is not necessary to consider driving current, the 2SK2159 is suitable for driving actuators of low-voltage portable systems such as headphone stereo sets and camcorders. 0.8 MIN. PACKAGE DIMENSIONS (in millimeters) 4.5 ± 0.1 1.6 ± 0.2 4.0 ± 0.25 2.5 ± 0.1 1..

2SK2159 Features

* Capable of drive gate with 1.5 V

* Small RDS(on) RDS(on) = 0.7 Ω MAX. @VGS = 1.5 V, ID = 0.1 A RDS(on) = 0.3 Ω MAX. @VGS = 4.0 V, ID = 1.0 A 0.47 1.5 ± 0.06 3.0 0.42 ± 0.06 0.41+0.03

* 0.05 EQUIVALENT CIRCUIT 2 3 Gate protection diode 1 Internal diode PIN CONNECTION 1

2SK2159 Datasheet (62.31 KB)
