2SK3356 - N-Channel MOSFET

2SK3356 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3356 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3356 PACKAGE TO-.
The 2SK3356 is N-channel MOS Field Effect Transistor designed for high current switching applications. Super low on-state resistan.

2SK3356 Features

* Super low on-state resistance: 5 5 RDS(on)1 = 8.0 mΩ MAX. (VGS = 10 V, ID = 38 A) RDS(on)2 = 12 mΩ MAX. (VGS = 4 V, ID = 38 A)
* Built-in gate protection diode 5
* Low Ciss: Ciss = 6300 pF TYP. ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage Gate to Source Vo

📥 Download Datasheet

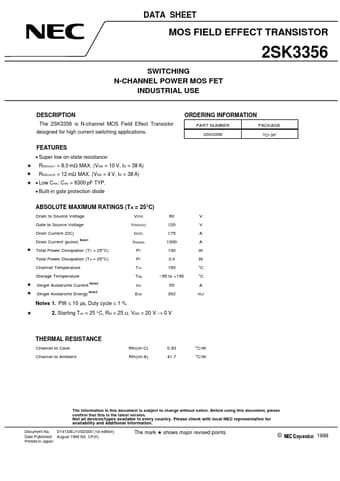

Preview of 2SK3356 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3356
Manufacturer
NEC
File Size
38.01 KB
Datasheet
2SK3356_NEC.pdf
Description
N-Channel MOSFET
