* Low on-state resistance 5 5 5 RDS(on)1 = 30 mΩ MAX. (VGS = 10 V, ID = 18 A) RDS(on)2 = 40 mΩ MAX. (VGS = 4.5 V, ID = 18 A)
* Low Ciss: Ciss = 3200 pF TYP.
* Built-in gate protection diode
* Isolated TO-220 package (Isolated TO-220) ABSOLUTE MAXIMUM RATINGS (TA = 25
2SK3360
NEC
40.48 KB
N-channel mosfet.

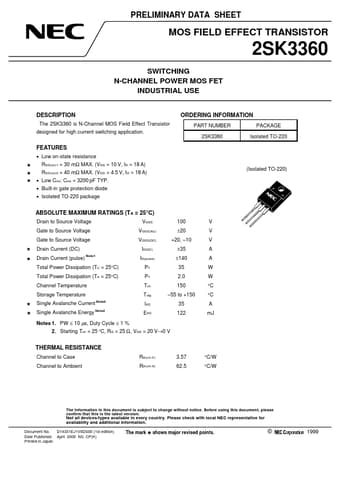

PRELIMINARY DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK3360
SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE
ORDERING INFORMATION
PART NUMBER 2SK3360.
