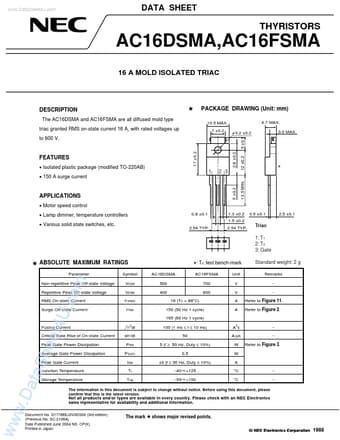

AC16DSMA, AC16FSMA Datasheet - NEC

AC16DSMA - (AC16DSMA / AC16FSMA) 16A MOLD ISOLATED TRIAC

The AC16DSMA and AC16FSMA are all diffused mold type triac granted RMS on-state current 16 A, with rated voltages up to 600 V.

17 ±0.2 PACKAGE DRAWING (Unit: mm) 10.5 MAX.

7 ±0.2 4.7 MAX.

φ 3.2 ±0.2 5 ±0.1 3.0 MAX.

* Isolated plastic package (modified TO-220AB) * 150 A surge curr

AC16DSMA Features

* 2.8 ±0.2 1 2 3

* APPLICATIONS

* Motor speed control

* Lamp dimmer, temperature controllers

* Various solid state switches, etc. 0.8 ±0.1 2.54 TYP. 1.3 ±0.2 1.5 ±0.2 2.54 TYP. 13.5 MIN. 5 ±0.2 0.5 ±0.1 2.5 ±0.1 Triac 1: T1 2: T2 3: Gate ABSOLUTE MAXIMUM RATINGS

AC16FSMA_NEC.pdf

This datasheet PDF includes multiple part numbers: AC16DSMA, AC16FSMA. Please refer to the document for exact specifications by model.
AC16DSMA Datasheet Preview Page 2 AC16DSMA Datasheet Preview Page 3

Datasheet Details

Part number:

AC16DSMA, AC16FSMA

Manufacturer:

NEC

File Size:

180.95 KB

Description:

(ac16dsma / ac16fsma) 16a mold isolated triac.

Note:

This datasheet PDF includes multiple part numbers: AC16DSMA, AC16FSMA.
Please refer to the document for exact specifications by model.
