AC16FSMA

(AC16DSMA / AC16FSMA) 16A MOLD ISOLATED TRIAC

AC16FSMA Features

* 2.8 ±0.2 1 2 3

* APPLICATIONS

* Motor speed control

* Lamp dimmer, temperature controllers

* Various solid state switches, etc. 0.8 ±0.1 2.54 TYP. 1.3 ±0.2 1.5 ±0.2 2.54 TYP. 13.5 MIN. 5 ±0.2 0.5 ±0.1 2.5 ±0.1 Triac 1: T1 2: T2 3: Gate ABSOLUTE MAXIMUM RATINGS

AC16FSMA General Description

The AC16DSMA and AC16FSMA are all diffused mold type triac granted RMS on-state current 16 A, with rated voltages up to 600 V. 17 ±0.2 PACKAGE DRAWING (Unit: mm) 10.5 MAX. 7 ±0.2 4.7 MAX. φ 3.2 ±0.2 5 ±0.1 3.0 MAX.

* Isolated plastic package (modified TO-220AB)

* 150 A surge curr.

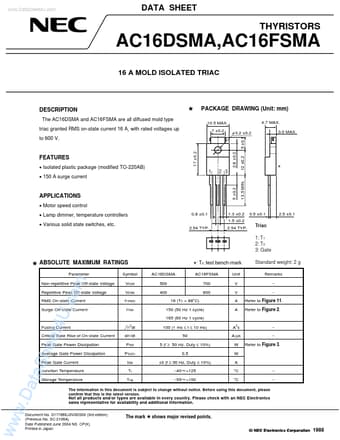

AC16FSMA Datasheet (180.95 KB)

Preview of AC16FSMA PDF

Datasheet Details

Part number:

AC16FSMA

Manufacturer:

NEC

File Size:

180.95 KB

Description:

(ac16dsma / ac16fsma) 16a mold isolated triac.
