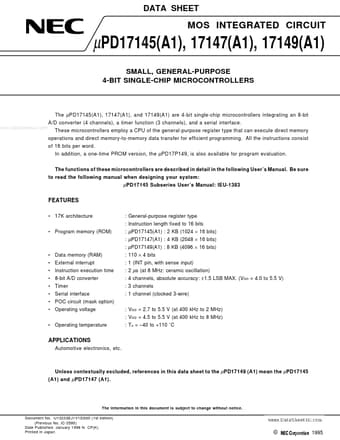

DATA SHEET MOS INTEGRATED CIRCUIT µPD17145(A1), 17147(A1), 17149(A1) SMALL, GENERAL-PURPOSE 4-BIT SINGLE-CHIP MICROCONTROLLERS The µ PD17145(A1), 17147(A1), and 17149(A1) are 4-bit single-chip microcontrollers integrating an 8-bit A/D converter (4 channels), a timer function (3 channels), and a serial interface. www.DataSheet4U.com These microcontrollers employ a CPU of the general-purpose register type that can execute direct memory operations and direct memory-to-memory data transfer for e.

D17145CT Features

* 17K architecture

* Program memory (ROM) : General-purpose register type : Instruction length fixed to 16 bits : µPD17145(A1) : 2 KB (1024 × 16 bits) : µPD17147(A1) : 4 KB (2048 × 16 bits) : µPD17149(A1) : 8 KB (4096 × 16 bits)

* Data memory (RAM)

* External interrup
