D64082

THREE-DIMENSIONAL Y/C SEPARATION LSI

D64082 Features

* Includes a high performance pipeline 10-bit A/D converter for composite and luminance signal, and 8-bit A/D converter for chroma signal processing.

* High resolution picture with 4 times of ratio in the previous system.

* Easy to make the three-dimension Y/C separation and

D64082 General Description

The µPD64082 realizes a high precision Y/C separation and a noise reduction by the three-dimension signal processing for NTSC signal. The three-dimension Y/C separation system can be easily realized with 4Mbit-EDO DRAM and A/D converter. This product has a high precision 10-bit A/D converter interna.

D64082 Datasheet (505.12 KB)

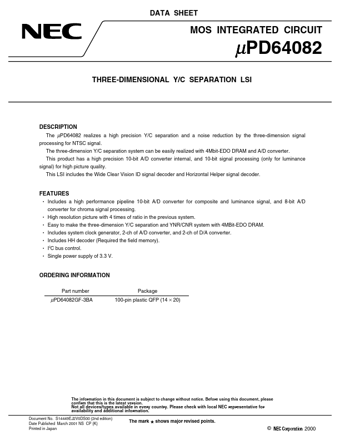

Preview of D64082 PDF

Datasheet Details

Part number:

D64082

Manufacturer:

NEC

File Size:

505.12 KB

Description:

Three-dimensional y/c separation lsi.
