D64084 - UPD64084

NEC

📥 Download Datasheet

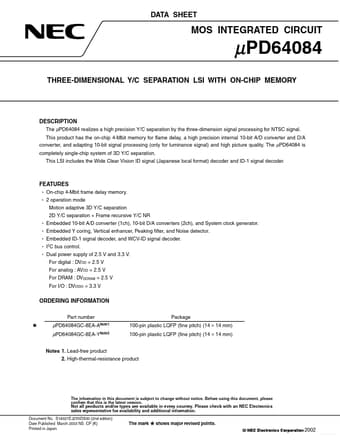

D64084 Datasheet Preview — Preview of D64084 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: D64084
Manufacturer: NEC
File Size: 458.97 KB
Datasheet: D64084-NEC.pdf
Description: UPD64084

D64084 Product details

Description

The µPD64084 realizes a high precision Y/C separation by the three-dimension signal processing for NTSC signal.

Features

On-chip 4-Mbit frame delay memory. 2 operation mode Motion adaptive 3D Y/C separation 2D Y/C separation + Frame recursive Y/C NR.
Embedded 10-bit A/D converter (1ch), 10-bit D/A converters (2ch), and System clock generator. Embedded Y coring, Vertical enhancer, Peaking filter, and Noise detector. Embedded ID-1 signal decoder, and WCV-ID signal decoder. I2C bus control. Dual power supply of 2.5 V and 3.3 V. For digital : DVDD.
